Tubing and Accessories

TCS602 2.4mm (3/32") bore tubing
(Suitable for the M100 and D200 pumps)

£11.90

  • Suitable for our M100 and D200 range of pumps.
  • Material. Silicone, chemically-resistant, flexible, wide working temp range -20C to 300C, good memory
  • Length 5m
  • Bore 2.4mm
  • Wall thickness 0.75mm




TCS603 3.2mm (1/8 ") bore tubing
(Suitable for the M200 pumps and M400K variants)

£11.90

  • Suitable for our M200 range of pumps and the M400K
  • Material. Silicone, chemically-resistant, flexible, wide working temp range -20C to 300C, good memory
  • Length 5m
  • Bore 3.2mm
  • Wall thickness 1.00mm




TCS612 4mm I.D. - 6.0mm O.D. bore tubing
(Suitable for the MG1000 pumps)

£9.75

  • Suitable for our MG1000 range of pumps
  • Material. PU translusent, chemically-resistant, flexible, good memory, hard walled
  • Length 5m
  • Bore 4.0mm
  • Wall thickness 1.00mm





TCS613 6mm I.D. - 8.0mm O.D. bore tubing
(Suitable for the MG2000 pumps)

£11.95

  • Suitable for our MG2000 range of pumps
  • Material. PU translusent, chemically-resistant, flexible, good memory, hard walled
  • Length 5m
  • Bore 6.0mm
  • Wall thickness 1.00mm






TCS605 5.0mm (0.196") bore tubing
(Suitable for the M400S variants)

£18.50

  • Suitable for our M400S and M400S-SUB pumps
  • Material. Silicone, chemically-resistant, flexible, wide working temp range -20C to 300C, good memory
  • Length 5m
  • Bore 5.0mm
  • Wall thickness 1.50mm




TCS606 8.0mm bore tubing
(Suitable for the M500 pump)

£18.50

  • Suitable for our M500 range of pumps
  • Material. Silicone, chemically-resistant, flexible, wide working temp range -20C to 300C, good memory
  • Length 5m
  • Bore 8.0mm
  • Wall thickness 2.0mm

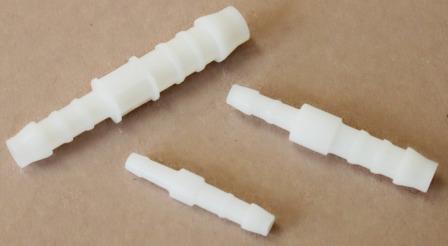

  Reducing tubing connector. Sold in packets of 5
(For Joining Different Tubing Sizes)
TCS721 3mm to 4mm Barbed Straight Adaptor Connector £7.15
TCS722 4mm to 6mm Barbed Straight Adaptor Connector £7.15
TCS723 6mm to 8mm Barbed Straight Adaptor Connector
£7.15

  • Suitable for our M100, M200, M400, M500 & D200 range of pumps.
  • Material. Acetal
  • Accepts flexible tubing
  • Supplied in packets of 5pcs




  3mm I.D. Barbed Connectors. Sold in packets of 5
(Suitable for the M100 and D200 pumps)
TCS701 3mm ID Barbed Straight Connector £5.85
TCS702 3mm ID Barbed Tee Connector £5.85
TCS703 3mm ID Barbed 90 Elbow Connector £5.85
TCS704 3mm ID Barbed Y Hosetail Connector
£5.85

  • Suitable for our M100 and D200 range of pumps.
  • Material. Acetal
  • Accepts 2.4mm tubing
  • Supplied in packets of 5pcs




  4mm I.D. Barbed Connectors. Sold in packets of 5
(Suitable for the M200 pumps and M400K variants)
TCS706 4mm ID Barbed Straight Connector £5.85
TCS707 4mm ID Barbed Tee Connector £5.85
TCS708 4mm ID Barbed 90 Elbow Connector £5.85
TCS709 4mm ID Barbed Y Hosetail Connector
£5.85

  • Suitable for our M200 and M400K range of pumps.
  • Material. Acetal
  • Accepts 3.2mm tubing
  • Supplied in packets of 5pcs




  6mm I.D. Barbed Connectors. Sold in packets of 5
(Suitable for the M400S variants)
TCS711 6mm ID Barbed Straight Connector £7.15
TCS712 6mm ID Barbed Tee Connector £7.15
TCS713 6mm ID Barbed 90 Elbow Connector £7.15
TCS714  6mm ID Barbed Y Hosetail Connector
£7.15

  • Suitable for our M200 and M400K range of pumps.
  • Material. Acetal
  • Accepts 3.2mm tubing
  • Supplied in packets of 5pcs




  8mm I.D. Barbed Connectors. Sold in packets of 5
(Suitable for the M500 variants)
TCS716 8mm ID Barbed Straight Connector £8.45
TCS717 8mm ID Barbed Tee Connector £8.45
TCS718 8mm ID Barbed 90 Elbow Connector £8.45
TCS719 8mm ID Barbed Y Hosetail Connector
£8.45

  • Suitable for our M500 range of pumps.
  • Material. Acetal
  • Accepts 8.0mm tubing
  • Supplied in packets of 5pcs

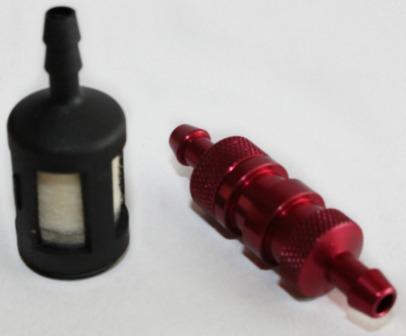

  Filters for liquid. Both inline and clunk available.
TCS901 Inline Filter - fits 2.4-3.2 tubing £9.90
TCS902 Clunk Filter - fits 2.4-3.2 tubing
£9.90

  • Suitable for our M100, M200, M400K range of pumps
  • Supplied separately

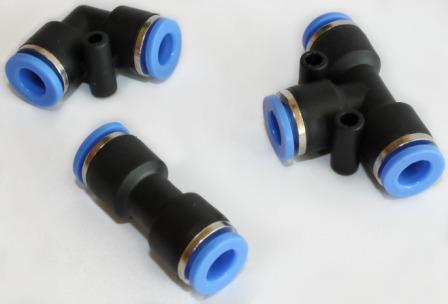

6mm O.D. push-fit pneumatic connectors. Sold in packs of 2. Suitable for MG1000 pumps
TCS751 6mm ID Push-fit Straight Connector £9.75
TCS752 6mm ID Push-fit Tee Connector

£9.75
TCS753 6mm ID Push-fit 90 Elbow Connector £9.75

  • Suitable for our MG1000 range of pumps.
  • Material. Acetal
  • Accepts 6.0mm O.D. Hard walled tubing
  • Supplied in packets of 2pcs






8mm O.D. push-fit pneumatic connectors. Sold in packs of 2. Suitable for MG2000 pumps
TCS754 8mm ID Push-fit Straight Connector £9.75
TCS755 8mm ID Push-fit Tee Connector £9.75
TCS756 8mm ID Push-fit 90 Elbow Connector £9.75

  • Suitable for our MG2000 range of pumps.
  • Material. Acetal
  • Accepts 8.0mm O.D. Hard walled tubing
  • Supplied in packets of 2pcs
