| D200 RANGE |
||||||
A versatile range of miniature high pressure diaphragm pumps for air / gases. The completely sealed, oil free pumping chamber make them particular suitable for applications where contaminates cannot be tolerated and with the correct choice of materials they are suitable for a wide range of different chemicals.
|
||||||
| INFORMATION |
||||||
| General | Size | Weight | Operating Temp | IP Rating | ||
| All MODELS | 39 x 28 x 17 | 22-35grms | -20 to 100 deg C | IP41 | ||
| Performance | Input Voltage |
Power Usage |
Max Pressure |
Max Free Flow |
||
| D220S - AIR | 3.0 - 4.5 | 0.1 - 0.6 W | 10.0 psi | 425 mLpm | ||
| D220BLX - AIR | 3.0 - 6.0 | 0.1 - 0.6 W | 11.0 psi | 450 mLpm | ||
| D250S - AIR | 3.0 - 4.5 | 0.1 - 0.6 W | 11.0 psi | 580 mLpm | ||
| D250BLX - AIR | 3.0 - 6.0 | 0.1 - 0.6 W | 12.0 psi | 620 mLpm | ||
| D220S-V | Standard molded pump with a coreless, brushed drive motor |
|||||
Coreless Motor
Viton Seals |
£75.50
GBP |
 |
||||
Note. Other seal materials are available please contact us to discuss your requirements
|
||||||
 |
 DATA SHEET |
 INSTRUCTIONS |
 ENGINEERING DRAWING |
 STEP FILE |
 CHEMICAL COMPATIBILITY |
|
|
|
||||||
| D220BLX-V | Standard molded pump with a longlife brushless drive motor and integrated controller |
|||||
Brushless Motor Viton Seals |
£75.50
GBP |
|
||||
Note. Other seal materials are available please contact us to discuss your requirements
|
||||||
 |
DATA SHEET |
INSTRUCTIONS |
ENGINEERING DRAWING |
STEP FILE |
CHEMICAL COMPATIBILITY |
|
|
||||||

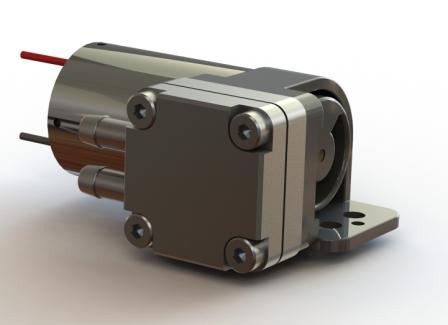

| D250S-V | CNC machined Stainless Steel variant of the standard pump with a coreless, brushed drive motor |
|||||
Coreless Motor Viton Seals |
£101.50 GBP |
|
||||
Note. Other seal materials are available please contact us to discuss your requirements
|
||||||
 |
DATA SHEET |
INSTRUCTIONS |
ENGINEERING DRAWING |
STEP FILE |
CHEMICAL COMPATIBILITY |
|
|
||||||

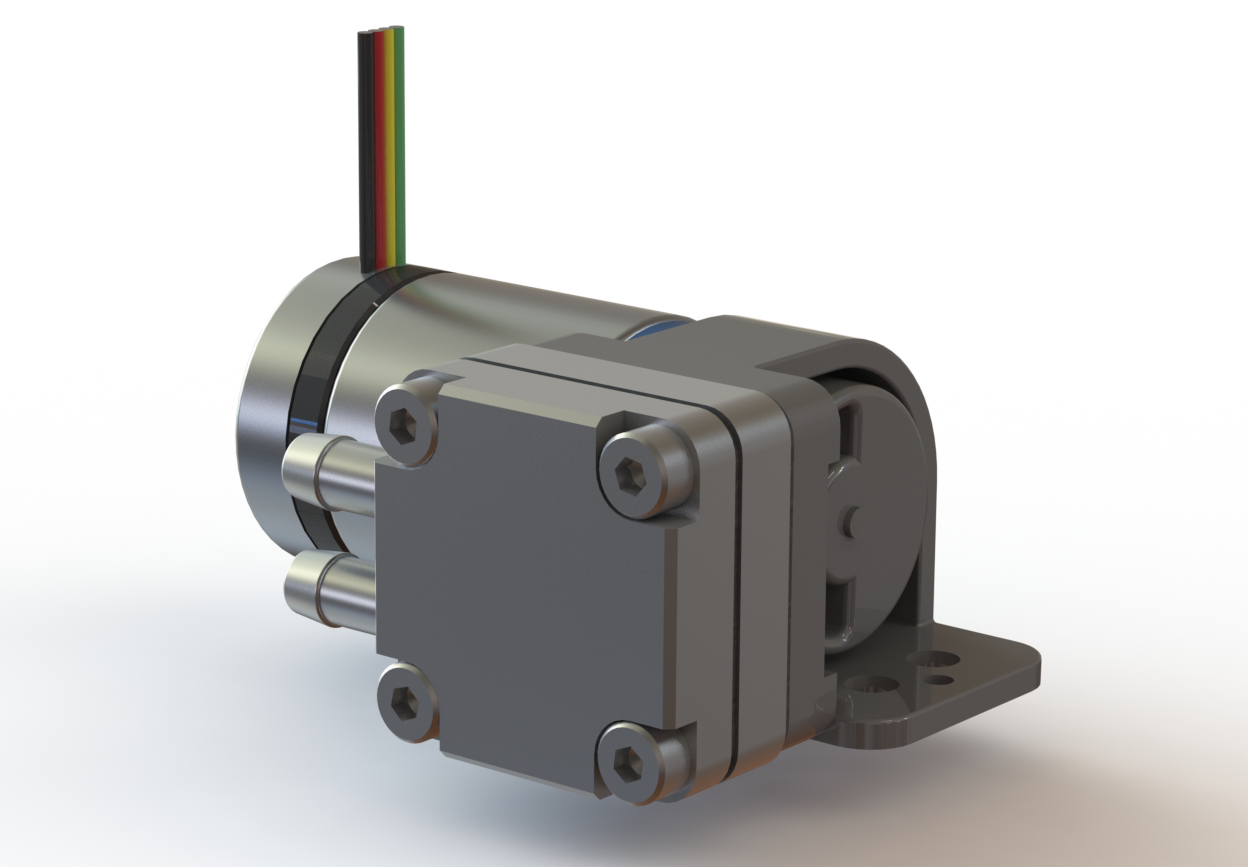

| D250BLX-V | CNC machined Stainless Steel variant of the standard pump with a longlife brushless drive motor with integrated driver |
|||||
Brushless Motor Silicon/Nitrile Seals |
£101.50
GBP |
|
||||
Note. Other seal materials are available please contact us to discuss your requirements
|
||||||
 |
DATA SHEET |
INSTRUCTIONS |
ENGINEERING DRAWING |
STEP FILE |
CHEMICAL COMPATIBILITY |
|
|
||||||
| D250S-LF-VSS | Liquid Fuel Micro Diaphragm Pump with a coreless, brushed drive motor |
|||||
Coreless Motor with Viton and Stainless Steel Seals |
£116.50
GBP |
|
||||
Note. Other seal materials are available please contact us to discuss your requirements
|
||||||
 |
DATA SHEET |
INSTRUCTIONS |
ENGINEERING DRAWING |
STEP FILE |
CHEMICAL COMPATIBILITY |
|
|
||||||
| D250BLX-LF-VSS | Liquid Fuel Micro Diaphragm Pump with a longlife brushless drive motor and integrated driver |
|||||
Brushless Motor with Viton |
£116.50
GBP |
|
||||
Note. Other seal materials are available please contact us to discuss your requirements
|
||||||
 |
DATA SHEET |
INSTRUCTIONS |
ENGINEERING DRAWING |
STEP FILE |
CHEMICAL COMPATIBILITY |
|
|
||||||
